Name: Shift Kit Transgo 48RE
SKU: 1910695

Product Details ＋

TransGo SHIFT KIT Valve Body Repair Kit for 48RE (2003-2008) Gas and Diesel

Product Overview:
The TransGo 48RE SHIFT KIT® Valve Body Repair Kit is designed for 2003 to 2008 Dodge and Ram vehicles equipped with the 48RE automatic transmission, whether powered by a gas or diesel engine. This kit addresses common issues such as TCC slip or shudder, 2nd gear band and direct clutch failure, as well as torque converter drain-back.

Features and Benefits:
This TransGo kit includes advanced valve body and internal components engineered to handle higher operating pressures. With a MAX main line pressure set to 115 psi in 1st, 2nd, and 3rd gear, and up to 160 psi in 4th gear or during lock-up, this kit significantly enhances the torque capacity of all friction elements, including the TCC clutch. These increased pressure specifications are ideal for heavy-duty work trucks and for towing tasks, like pulling a boat up a ramp. The kit ensures a smooth driving experience, maintaining OE RPM shift timing for optimal engine power. As a result, shifts are short, clean, and free of harshness or noise.

This kit also features innovative components, such as the line-to-converter feed system that helps the transmission run cooler and extends the life of the TCC clutch. Additionally, the included TransGo-pioneered manual valve reduces overnight delayed engagement in forward and reverse gears caused by torque converter drain-back.

Installation is flexible: the kit can be installed with the transmission in the vehicle, or, if the transmission is on the bench for an overhaul, internal sealing rings are provided.

Corrects/Prevents/Reduces:

TCC slip or shudder
Reduces converter drain-back
2nd band failure
3rd clutch failure
Increases TCC and clutch element torque capacity
Improves TCC engagement feel
Provides short, clean shifts

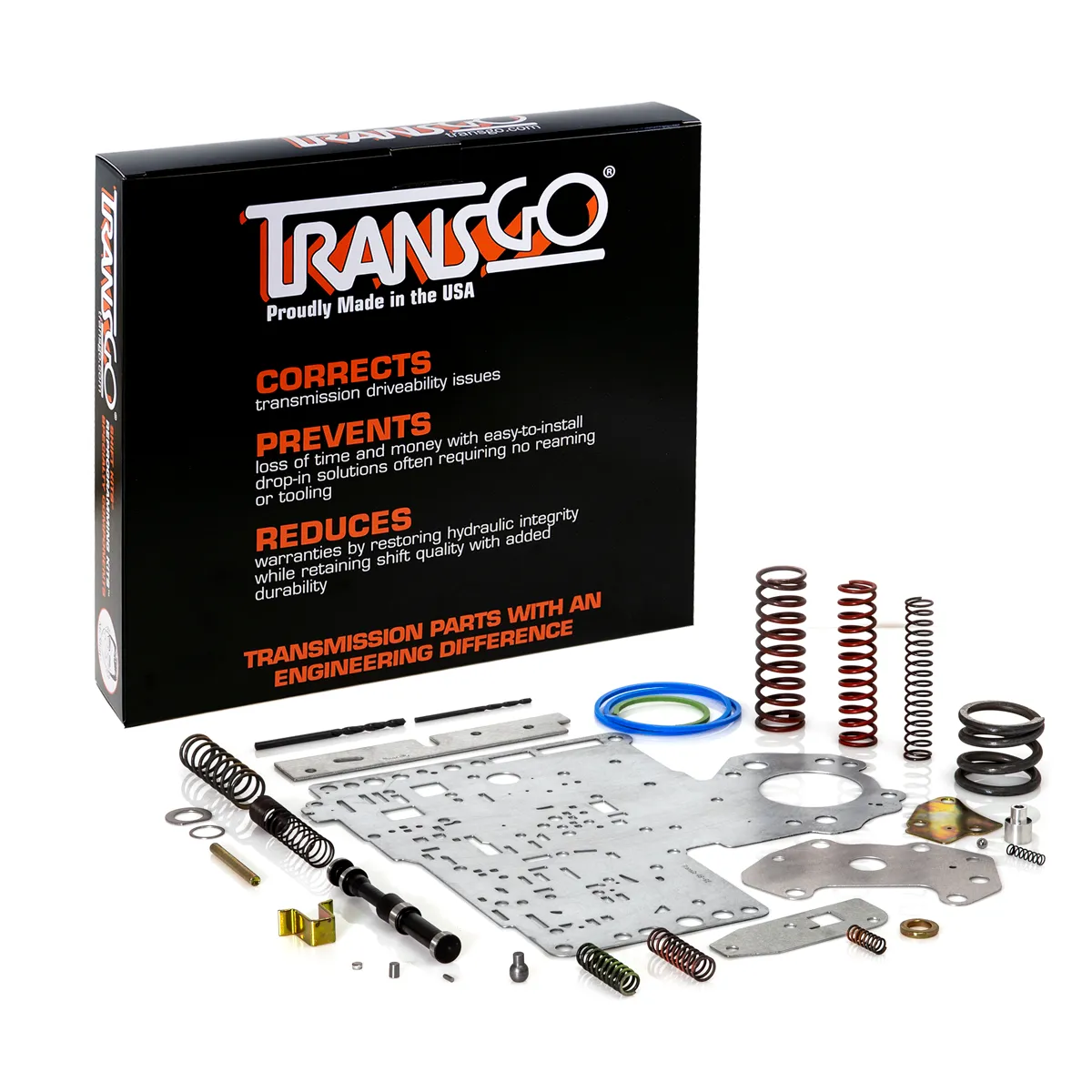

Kit Includes:

(3) High-temperature, low-shrink sealing rings
Lower 1-2 accumulator spring
Throttle valve spring (optional for later upshifts)
Part throttle body transfer plate, pin, and detent limit valve spring
Part throttle valve spacer (for units with TTVA motor and modified computer programming)
USA-made hardened steel manual valve with converter charge in park provision and cherry bomb
Mumbly peg (for easy detent spring and ball installation)
(3) 3-4 accumulator springs and plug for accumulator housing
Transfer plate, tapered plug, spring, checkball, and limit bushing
3-4 quick fill valve spring
Main valve body separator plate
Solenoid body plate
PR valve shim, spring seat, and inner spring for line-to-converter feed provision, plus outer spring for increased pressure
Boost valve bracket and optional tuning plate
(2) Drill bits
