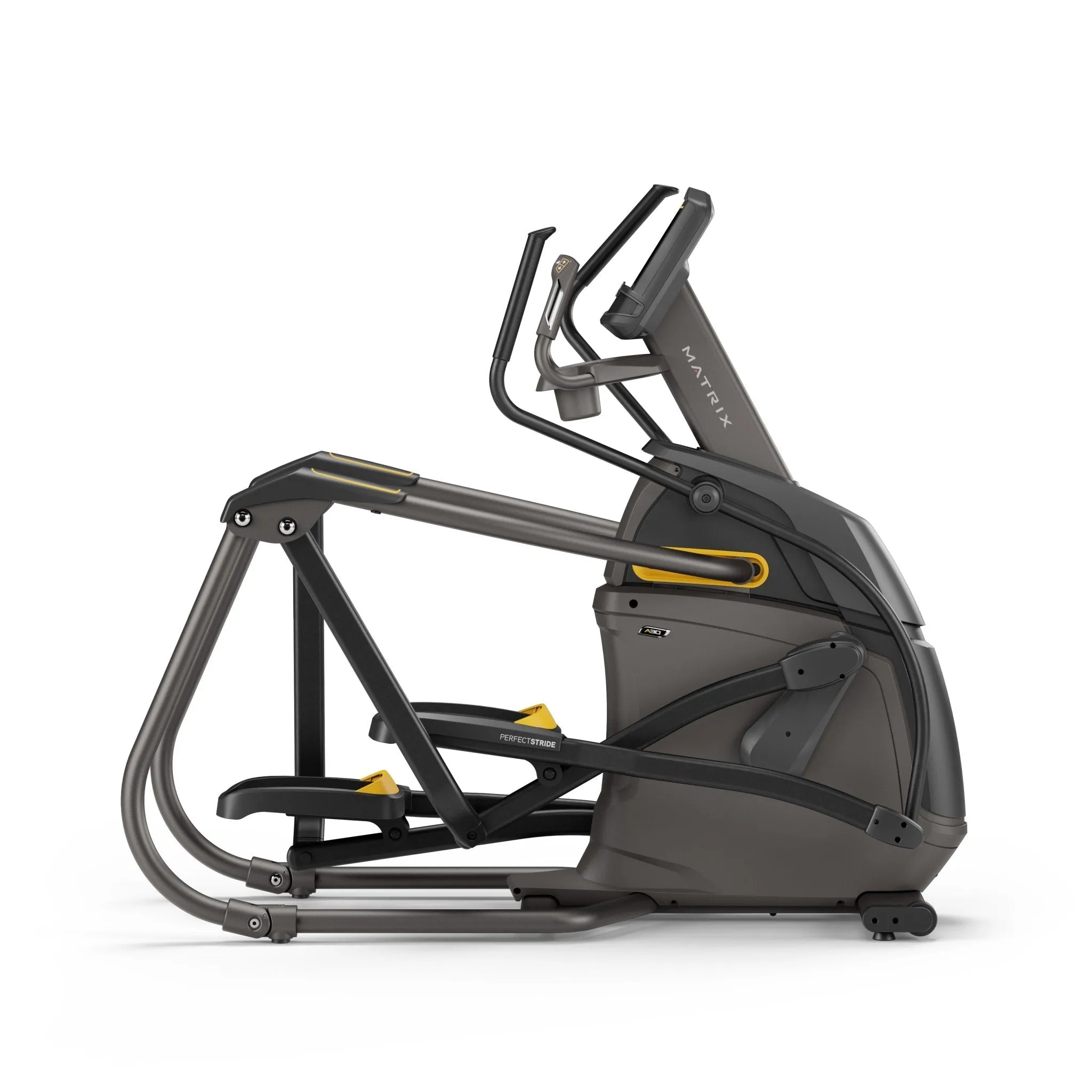

Count on our exclusive Suspension Elliptical Technology and PerfectStride® Motion for an exceptionally smooth, ultra-comfortable exercise experience as you adjust incline to target the muscles you want to work most.
Description

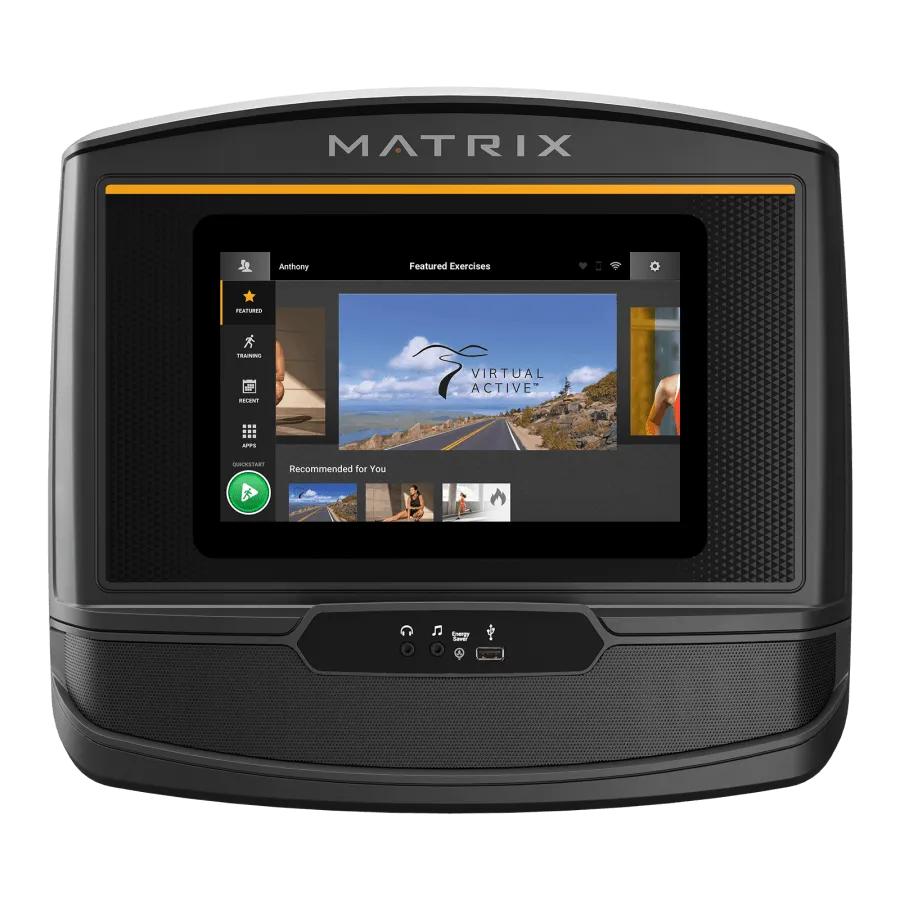

Our XER console includes a clear 10" touchscreen display and an intuitive home screen that offers easy access to entertainment. WiFi and Bluetooth available.
BLUETOOTH ENABLED
Connect your your own Bluetooth heart rate monitor to keep your workout on track to meet your goals. Connect to popular training apps via Bluetooth FTMS.
WORKOUT PROGRAMS
Keep every workout fresh with metric-driven cardio programs, create your own custom workouts, and repeat workouts automatically saved in your workout calendar.
ENERGY SAVER MODE
After 15 minutes of inactivity, the console switches to sleep status, which draws less energy.
Specifications
Frame Specifications
| Assembled Dimensions (L x W x H) |
191 x 73 x 164 cm / 75.2” x 29” x 65” |
| Assembled Weight |
313 lbs. |
| Extras | Water bottle holder, accessory tray |
| Fly Wheel Weight | 30 lbs |
| Frame Type |
Ascent Trainer |
| Handle Bar Design | Dual action, stationary with resistance / incline toggles and heart rate grips |
| Incline Range | 24%–54% |
| Max User Weight | 350 lbs. |
| Pedal Spacing | 2.6” |
| Pedal Type |
Oversized |
| Power Incline | N/A |
| Power Requirements | 120 V AC power, 15 A circuit |
| Resistance Range | 20 levels, electronically adjustable |
| Resistance System | ECB magnetic braking system |
| Step-On Height | 8.7” |
| Stride Length |
20"-24" |
Console Specifications
| Display Type |
10” class capacitive touchscreen |
| Wifi Enabled |
ViaFit Connectivity, entertainment apps, software updates |
| Bluetooth Enabled |
Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor |
| HDMI Port |
No |
| USB Port |
Front: Use to access media from compatible devices and to install software updates. |
| Speakers |
3 Watt |
| Console Apps |
My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market) |
| Passport Ready | N/A |
| ViaFit Connectivity |
Yes |
| Heart Rate |
Bluetooth wireless heart rate, Bluetooth heart rate strap included |
| Console Extras |
Integrated reading rack, energy saver mode, audio in/out |
| Workouts |
12 total — manual, intervals, constant watts, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, iFit, custom |
| Display Feedback |
Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, incline, previous incline, resistance, previous resistance |
| Console Weight | 10 lbs. |
Warranty
| Home Warranty - Frame | Lifetime |
| Home Warranty - Motor | Lifetime |
| Home Warranty - Parts | 5 years |
| Home Warranty - Labor | 2 years |
