Product Details
＋
DESCRIPTION:

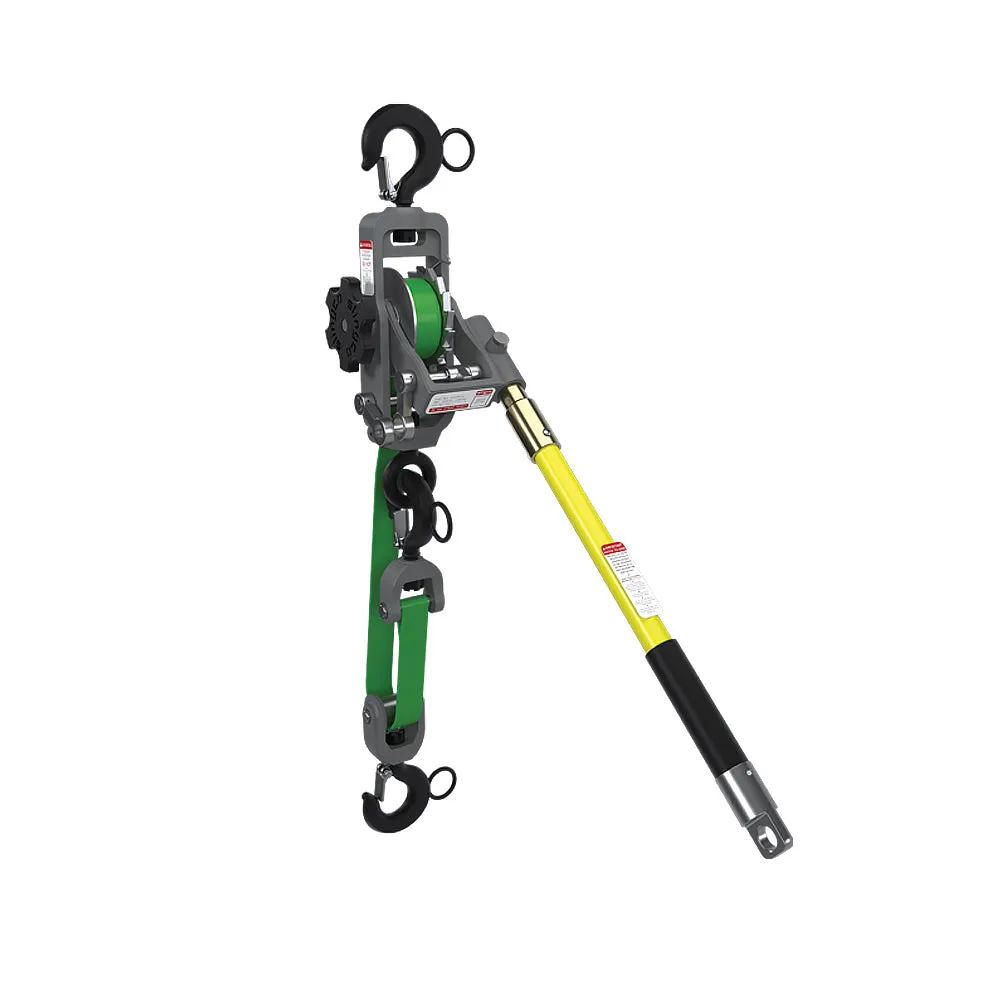

Use the Slingco 3k Strap Hoist to splice, dead end, and sag lines. The Slingco 3k Strap Hoist features an interlocking pawl lever system with dual pawl springs for controlled tightening and releasing of the strap and to ensure the hoist is engaged while in use. The strap hoist complies with ASME B-30-21 standard and all units are tested to 125% of load.
The Slingco 3k Strap Hoist uses pressure die castings for a professional look, consistent material properties, and smooth finish. The strap is hi-viz bright green in color for easy visibility. The strap hoist has three operating positions: lift/pull, lower/release, and freewheeling.
FEATURES:
- ASME B-30-21 compliant
- 125% working load tested
- Hi-viz green strap
- Interlocking pawl lever system
- Replacement parts readily available
- Hot stick operable version

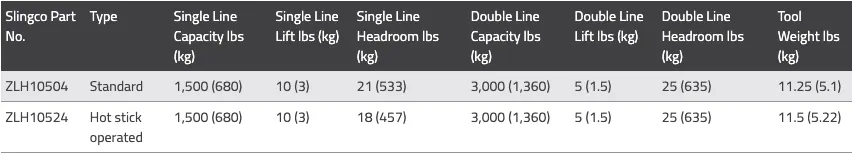

SPECIFICATIONS:
- Single Line Capacity lbs (kg): 1,500lbs (680kg)
- Single Line Lift lbs (kg): 10lbs (3kg)
- Single Line Headroom lbs (kg): 21lbs (533kg)
- Double Line Capacity lb (kg): 3,000lbs (1,360kg)
- Double Line Lift lbs (kg): 5lbs (1.5kg)
- Double Line Headroom lbs (kg): 25lbs (635kg)
AVAILABLE OPTIONS:
- Standard (ZLH10504)
- Hot Stick Operated (ZLH10524)
